25khz Ultrasonic Spraying and coating transducer for plate glass
Ultrasonic spray (atomization) is the use of ultrasonic energy to scatter water or liquid, forming micro particles of several microns to more than 100 microns, which are used for humidification, liquid granulation, mixing, chemical reaction and spraying.
Ultrasonic atomization is the use of ultrasonic energy to scatter water or liquid and form tiny particles of several microns to more than 100 microns. This spray technology is widely applied in the fields of industry and research and development, and will gradually replace traditional pressure spraying.
The power source of the sprayer equipment adopts a high-power ultrasonic transducer, and the whole machine is composed of an ultrasonic transducer, a horn, an atomizing head and a special ultrasonic generator. The transducer drives the atomizing head to carry out high frequency vibration, exerts ultrasonic power on water or other liquids, scatters the flowing liquid into fine particles and sprays into the air, so as to achieve the purpose of spray (atomization). Because of its unique soft spray characteristics, the equipment greatly reduces the backspray, thereby reducing the cost and pollution of the surrounding air. At the same time, this new technology has expanded more applications, for example, it is ideal for spraying low flow. In addition, for the substrate spraying, atomization and humidification, spray drying, mesh spraying, and other industrial and research applications, the sprayer equipment will produce better results than other technologies.
It has been playing an important role in the ultrasonic atomization technology industry for more than 20 years. Relying on its rich experience and technology, we can help you integrate our technology into practical application. We have the ability to provide you with unique and creative solutions.
| Type | frequency | power | Material |
| ARS-PT30100 | 25 | 100 | PZT-8 |
25khz Ultrasonic Spraying and coating transducer for plate glass
|
|

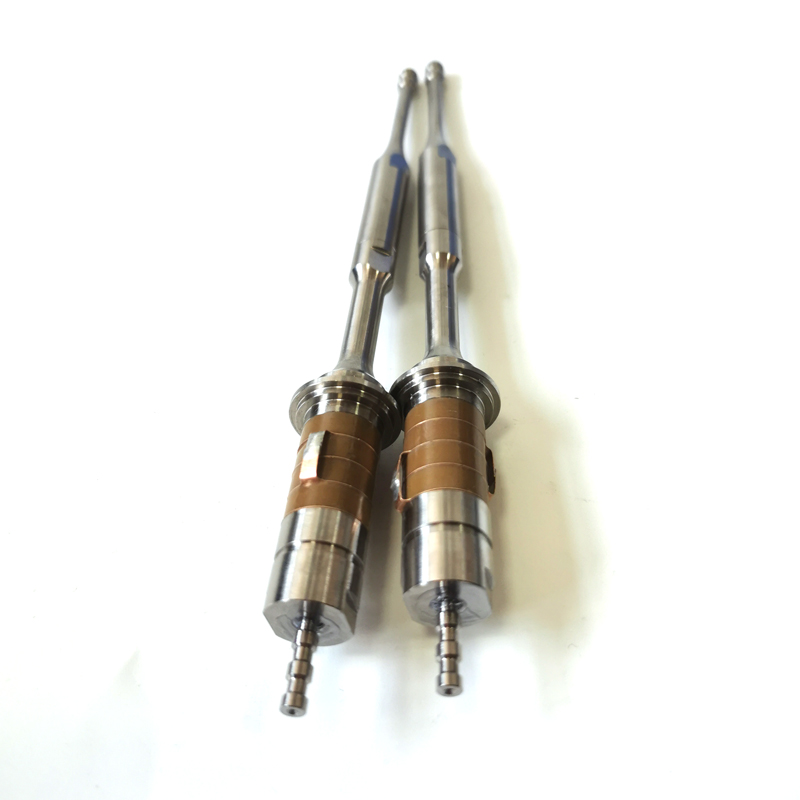

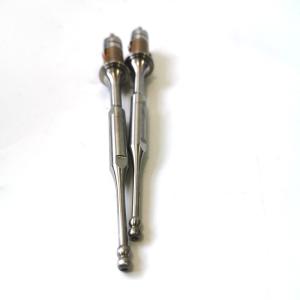

25khz Ultrasonic Spraying and coating transducer for plate glass Images
|
